Sperm quality analyzer lab machine,Male semen text product

FOB Reference Price:Get Latest Price
US $2,000-3,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Quick Details
Clinical Examination Aids
Brand Name:
Model Number:
Place of Origin:
Jiangsu, China (Mainland)
Instrument classification:
Class I
application field:
white and grey
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden Case
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(day) 5 To be negotiated
Company Information




Jiangsu Sanwe Medical Science and Technology Co.,ltd.(http://www.vvvmc.com

We are a medial equipments manufacturer in Jiangsu,China and have managing this field for more than 25 years.Our main products include

1)Andrology(Sperm Collector&Analyzer,Male sexual dysfunction diagnostic and therapeutic machine,Prostate Traetment machine)

2)Gynecology(Digital/Video/Optical Colposcope,Infrared Inspection Equipment for Mammary Gland)

3)Ultrasound scanner




Our Services

Packaging,Wooden Case               Warranty,18 months               Shipping,3-5 days after payment confirmation,Air or as you require


Product Description

SW-3702 Sperm Quality Analyzer


Apparatus Introduction

It’s a kind of high-tech intelligent product used in modern reproductive medicine with the combination of computer image processing technology and advanced artificial intelligence technology. It can be used for automatic identification of sperm and automatic tracking of sperm movement, finish the analysis for a number of parameters in conformity with the WHO international standards fast and take comprehensive quantitative analysis of sperm activity and static characteristics. It is suitable for clinical semen detection, providing an important scientific basis for male fertility.


Apparatus Features

1,Can filter out all kinds of impurities which are different from sperm to ensure the accuracy of test.

2,Scatheless detection can ensure the sperm’s natural motion state and monolayer sampling.

3,All the data and dynamic static images of sperm examination for patients are stored with digital form. It can be used for variedly querying, modifying, adding up, and printing inspection reports, and can also share resource within the networking freely.

4,Advanced morphological analysis software, clearly and intuitively colorful picture.

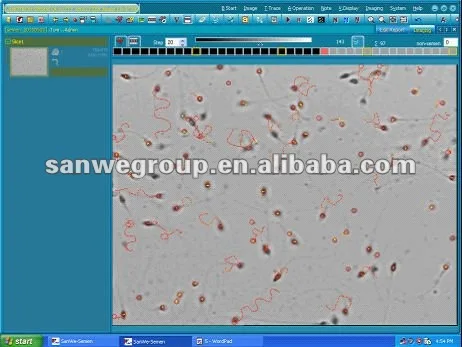

Colorful picture –close shot


Detection Items

1)      Sperms density, survival rate of sperms, the movement locus of sperms, and distribution curve of sperms movement

2)      Average speed, total number of the sperms, total numbers of motile sperms, survival rate of the sperms in the curvilinear motion of sperms

3)      Average speed, total number of the sperms, total numbers of motile sperms, survival rate of the sperms in the rectilinear motion of the sperms

4)      Average speed, total number of the sperms, total numbers of motile sperms, survival rate of the sperms in the average path motion of the sperms

5)      Graded speed of sperms motion: the survival rate of A rapid motion forward, B slow motion forward, C non travel forward, D hyperslow or motionless of the sperms

6)      The side-way amplitude of sperms, sperms wing, whipping frequency of sperms, the rate of rectilinear motion, total number

7)      linear speed, average speed of motion, the sperms’ number of linear motion


Technical Parameters

Maximum of the detected sperms: 1000

The range of detection speed: 0-180µm/s

The frame number of picture: 0-75

Resolution of particle diameter: 0-150µm/s

The analysis time: 1-5 seconds or longer

Group number of collected images: 1-15 groups

Applicable magnification of microscope objective lens: 10x.20x.25x.40x

The displayed content of sperm detection system is no less than: 1) distribution curve of static sperms, 2) the features data of semen and statistical analysis data from all the main functions, 3) sperm dynamic trajectory curve, 4) display various sperms motion speed and energy isarithmic map of sperms, 5) case information for management such as patients’ name;

The output content from sperms detection system is no less than: 1) the main technical data of sperms, 2) sperm dynamic trajectory curve, 3) analysis and determinant histogram 4) case information for management such as patients’ name

Subjective examination items:

other ingredient of semen-- epithelium, hematid, leucocyte

number of teratosperm—number of head teratosperm, number of tail teratosperm, number of body teratosperm, number of mixed teratosperm

rate of teratosperm

sperm appearance, viscosity of sperm

sperm volume, dilution ratio

scent of sperm, sperm extraction method

sperm PH value, date and time of sperm extraction

continence time, basic data of patient

System features

1)The actual clinical demand of grass roots is taken into consideration during the design process. Simple and rational structure, stable property and friendly human-computer interface for intuitive and easy use; the operators can get hold of operation method without being trained. The manual inspection adopts quantitative criteria that can reduce the knowledge pressure of inspectors, which is the epic change in the inspection method.

2) High intelligence, automatic inspection, analysis and scaling can guarantee the accuracy of test data under any enlargement ratio and provide the comprehensive test data for sperm quality objectively, accurately and scientifically.
3) Overall and intuitive data image testing and analysis, rich test data and overall analysis data; 34 items of semen index can be detected; 3 kinds of speed distribution statistical chart; high detecting speed and the detection and analysis could be finished in no time, which can greatly reduce the labor intensity of workers. Pollution can be reduced efficiently; strong operability; counting function on screen display which can display the test data in real time; the repeated verification of test result is clear; neat design of printed report forms can make the diagnostic result easy to check out.
4) With the database function; the test result is stored in the system hard disk, which can be inquired, adjusted and printed; advanced method is provided for clinical science study and teaching; strong extended function which can apply to analysis and test on biological properties such as corpuscle or colon bacillus etc, as well as special industries such as animal or animal husbandry.


Pictures shown
