Disposable sperm counting chamber for semen analysis, Semen Analysis counting chamber

FOB Reference Price:Get Latest Price
US $2-4 / Sets | 20 Set/Sets (Min. Order)
Customization:
Customized logo (Min. Order: 1000 Sets)
Customized packaging (Min. Order: 1000 Sets)

More

Graphic customization (Min. Order: 1000 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Clinical Examination Aids
Brand Name:
Sanwe
Place of Origin:
Jiangsu, China (Mainland)
Instrument classification:
Class I
Application:
Clinical Semen Detection
MOQ:
20 unit
Payment terms:
T/T in advance
Delivery time:
3-5 working days
Function:
Sperm Analysis
Language version:
English. Chinese
Color:
Yellow
Supply Ability
Supply Ability:
50 Set/Sets per Week
Packaging & Delivery
Packaging Details
Packing size:
in one small carton
Port
Shanghai port
Lead Time :
Quantity(Sets) 1 - 300 >300
Est. Time(day) 5 To be negotiated

 Disposable Sperm Counting chamber



Product Description





[Glass Specification]76.2mm×25.4mm×1.0mm



[ Usage ]The sperm counting chambers are apply to the computer and microscope assisted tests, such as, clinical medical examinations, animal husbandries, life science researches, drug trials, toxicology experiments for different types sperm analysis.



Usage: Using the micro pipette or pipette, it can add moderate concentration sample solution to the application area of the slide, and then the slide can automatically suck the sample into the chamber after the sample touch the edge of the cover slip.



Storage Condition: Ventilated, Dry, Moistureproof, Dust Pollution.



Product Advantage:

1. The slides can use the optimized counting chamber forming the single–layer, independent sperm cell, without overlapping and stacking phenomena. 2.Sanwe counting chamber can automatically suck the sperm from the suction port and fill with the entire chamber. It can save your time and reduce the working intensity.



3.One time only, no need to wash for reuse. It can prevent cross pollution from repeated use.

4.Each counting slide can test four or more samples in the same time.



Annoucements:

1. Semen collecting samples should be combined with samples after dilution, so as not to affect observation and analysis because of sperm density.

2. Before testing, sperm samples are placed on 38  thermostatic temperature platform for 3 minutes, which can get more accurate test results;

3. For frozen or more viscous semen samples, it should gently tap the coverslip after sample adding to eliminate static electricity and the surface protein adhesion, spreading sperms and avoiding sperm aggregation to affect the observation and analysis;

4. The counting slides are disposable supplies. Don’t reuse it and then it can protect the test results from the contamination.

ML-CASA sperm counting slides are designed for the computer assisted sperm analysis to meet the requirements of CASA and OIE international standards.



Comparison Chart



Sanwe Sperm Counting Chamber

Similar Sperm Counting Chamber





According  to  the  different  species  of

Detecting  different  sperms  all  need  to

sperms,   we   design   many   different

test  and  cannot  solve  the  problem  of

counting chamber to fit with it. No matter

accumulate sperms.

how high the sperms it is, it will be a



single-deck in our chamber.







Ease of use, do not need experience.

Need to debug and only for professional.





Disposable and cleaning.

Recycling and hard to keep slides clean.





One slide can support four sample, save

One slide just supports one sample and

time and money.

needs to wash by manual work.





Do  not  need  to  dilute,  adding  sperms

Do  not  need  to  dilute,  adding  sperms

immediately.

need to debug.





The strictly separate sealing design can

One time one sample, recycle to clean.

prevent the cross infection.







Transparency  with  clean  background,

It would be hard to recognize under the

and sperm images are clear to count.

accumulation and unclear background.





Sanwe counting chamber is single-deck

The thick slide can move freely, so that

with  no  gridding.  It  designs  for  the

you  cannot  control  the  chamber  very

detection of sperm motility. Sperms can

well.

move freely.



Short time detection with high efficiency.

Heating thick slide needs a  long time,

It has fine heat-conducting property and

and be warm slowly. So that it will has

can up to the setting temperature fastly

bad effect on the motility of sperms.

to protect the motility of sperms.

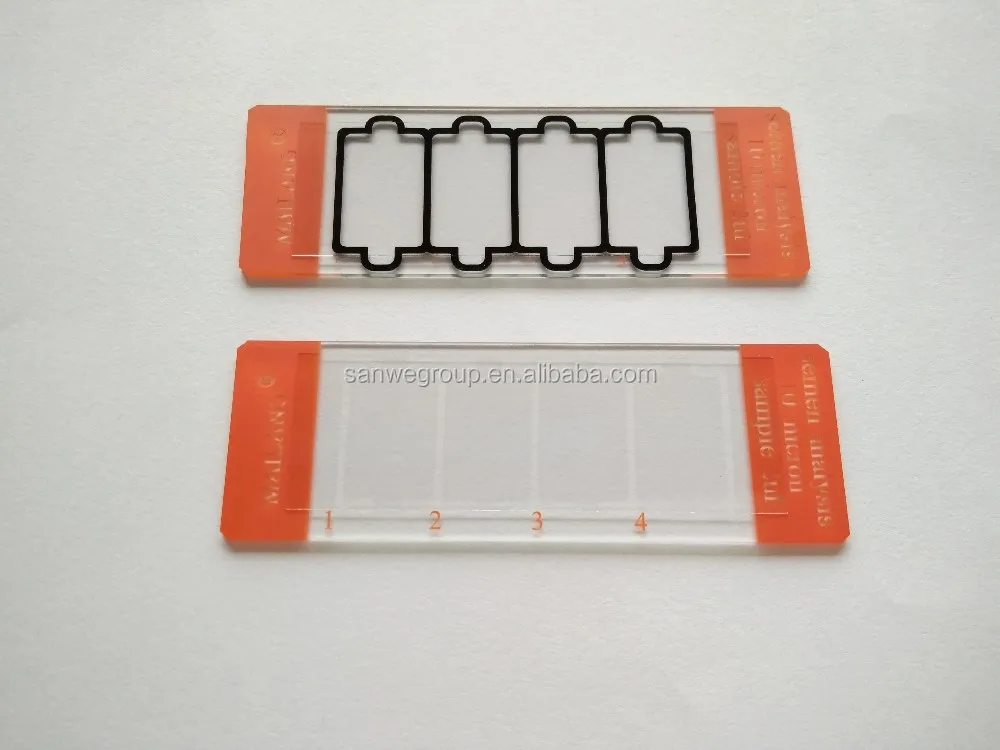

Detail Imag





Sperm Calculating Chamber





 Semen Conunting Slide
