Quick Details

  • Type: Electronic Endoscope
  • Brand Name: SW
  • Model Number: SW-3303
  • Place of Origin: Jiangsu, China (Mainland)
  • Camera: SONY
  • Colour: Pink

Packaging & Delivery

Packaging Details: Two Wooden Case
Delivery Detail: 3- days after payment confirmation
Company Information



Jiangsu Sanwe Medical Science and Technology Co.,ltd.(http://www.vvvmc.com

We are a medial equipments manufacturer in Jiangsu,China and have managing this field for more than 25 years.Our main products include

Andrology(Sperm Collector&Analyzer,Male sexual dysfunction diagnostic and therapeutic machine,Prostate Traetment machine)

Gynecology(Digital/Video/Optical Colposcope,Infrared Inspection Equipment for Mammary Gland)

Ultrasound scanner



Our Services



Packaging,Wooden Case               Warranty,18 months               Shipping,3-5 days after payment confirmation,Air or as you require





Product Description

SW-3303 Digital Colposcope



Advantage
1. Clear image
2. Competitive price
3. Can be adjusted arbitrarily in extend-retract and length

1)Apparatus Introduction
This colposcope is an electrical and optical high-tech diagnosis system merging computer technology, optics, imaging study, ergonomics principles and colposcopy into an organic whole, so that it can have more accurate evaluation on the border sector where we are not able to see by our naked eyes and bring more comprehensive solution to diagnosis and treatment of diseases.

2)Apparatus Features
Specialized design, simple operation, and more humanity

1Sony Exview HAD high-speed auto-focus CCD technology, can track fast, and capture images to observe the details of change.
2Wide view with depth design makes observation or acquisition image more three-dimensional.
3Ultra-high white LED ring light source group structure, achieving the effect of shadowless lamp, makes the image more realistic clear, and enables illuminance and color temperature control to be more realistically represent the morphological changes of observed tissues.
4The system control includes the function of continuous optical zoom adjustment, magnification display, the reaction time of acetic acid, the electronic green filter, image freeze, etc.

3)Software Features
1. With images of real-time, freezing, collecting, processing, pseudo-color, measuring, comparising, storaging, editing and other functions
2. Editing report quickly and easily, and lots of practical expert diagnosis thesaurus, templates, making it easy to tune out and edit
3. Dynamic video and storage systems without time limits
4. More than 300, 000 cases storage capacity
5. Large C / S structure database server
6. Compatible with the PACS system, with a sound network system function
7. With rich standard part map, a typical case images and diagnostic results to help doctors quickly and accurately diagnose the illness
8. Connected with HIS to transmit patient information via the internet

4)Applicable Range
1. Vaginal exfoliative cytology smear examination is more than three Pap levels.
2. Cytological examination is negative, but the naked eye observation with the suspection of cancer
3. Long-term treatment in accordance with cervicitis, but the effects are not good.
4. The minor structural form of the lesions is difficult to determine by the observation with the naked eye.
5. The disease site and its spread part that can only be determined under the electric colposcopy before cervical cancer surgery

5)Performance Indicators
1. CameraSony Exview HAD Camera, supporting RS232 illumination
2. Lens resolution1 / 4 "Super HAD color CCD, 800, 000 pixels
3. Lens horizon resolution: 480 lines or more
4. Camera Video Output Interface: S-Video, Video, PAL format
5. The camera signal to noise ratio: 52 dB
6. The lens focusing distance: Standard 200 ~ 500mm, support 150 ~ 550mm
7. 18 times optical zoom lens, digital zoom 12 times
8. Magnification: 216 times
9. Field of view: Φ = 2.5 ~ 320mm
10. Camera self-balancing: Internal AWB Metering mode
11. Light source types of lens: Multi-point circular LED group
12. Lens focus mode: Fast automatic or manual focusing
13. 360 degree angle observation imported control handle

6)Standard equipment

Host 1unit

LCD 1unit

Grabbing card 1piece

Foot switch 1set

Bracket 1set

Colour printer 1unit

Camera 1set

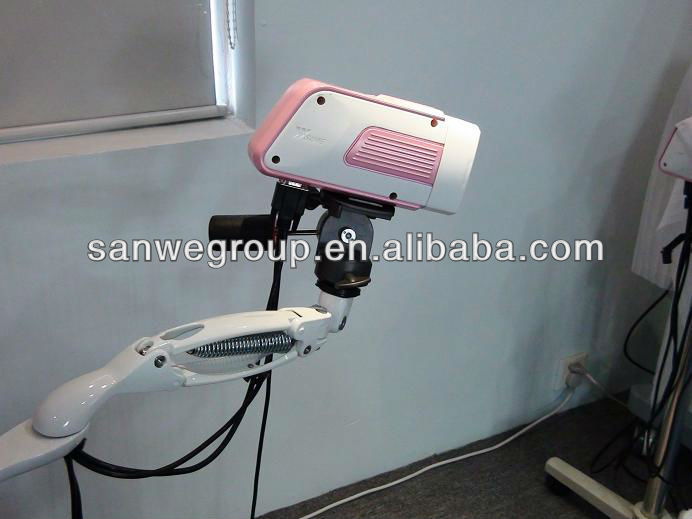

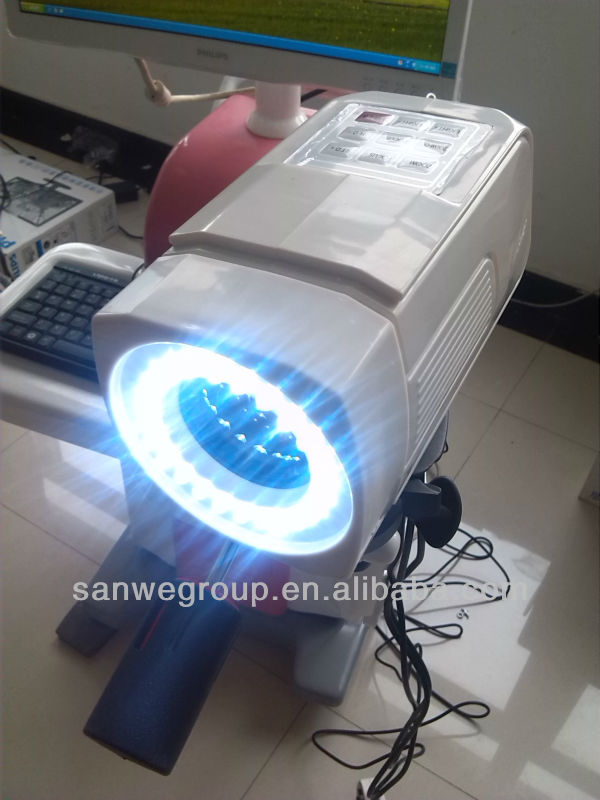

Pictures




Contact person, Claire   Trademanager: cn1000921545     Skype:baishu12
Any ideas you have,welcome feel free contact me!
